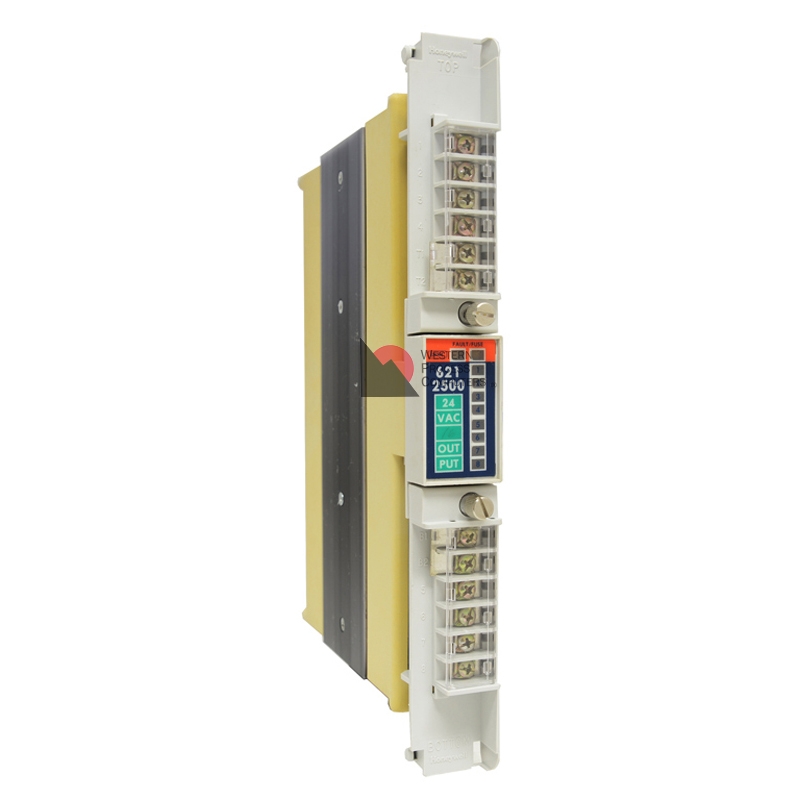

621-2500
Availability: Low Stock
24VAC Output
| 621-2500 | |
|---|---|
| Outputs | 8 Output On at zero crossing |
| Points Per Common | 4 |
| Nominal Voltage | 24 Vac |
| Voltage Range | 20-28 Vac |
| Maximum Current Range | 2A per circuit 6A per common, 8A per module |
| Surge Current | 8A, 1 cycle (non-repetitive) |
| Off-State Leakage Current | _ 5mA (typical) |
| On-State Voltage Drop | _ 2 Vac at 2A |
| Fusing | 1 per circuit, 3A fast blow |
| Operating Current +5 Vdc | 80mA plus 24mA for each Energized output, 272mA maximum |
| Terminal Block Required | 621-9949 |
