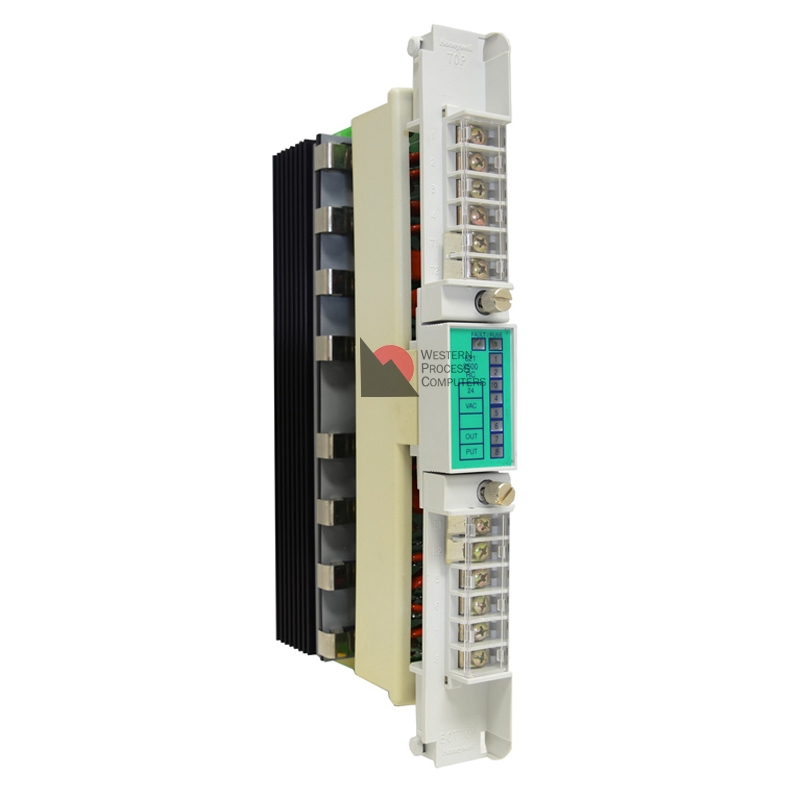

621-2500RC
Availability: Low Stock
24VAC Output, 8-pt
| 621-2500RC | |
|---|---|
| Outputs | 8 Output On at zero crossing |
| Points Per Common | 4 |
| Nominal Voltage | 24 Vac |
| Voltage Range | 20-28 Vac |
| Maximum Current Range | 2A per circuit 6A per common, 8A per module |
| Surge Current | 8A, 1 cycle (non-repetitive) |
| Off-State Leakage Current | ≤5mA (typical) |
| On-State Voltage Drop | ≤2 Vac at 2A |
| Fusing | 1 per circuit, 3A fast blow |
| Operating Current +5 Vdc | 80mA plus 24mA for each Energized output, 272mA maximum |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-2500RC
- Alternates: 6212500RC
- Category: IPC 621-Output
- Availability: Low Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6212500RC. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
