621-3552RC
Availability: In Stock
24VDC Sink Fast IN 16 pt

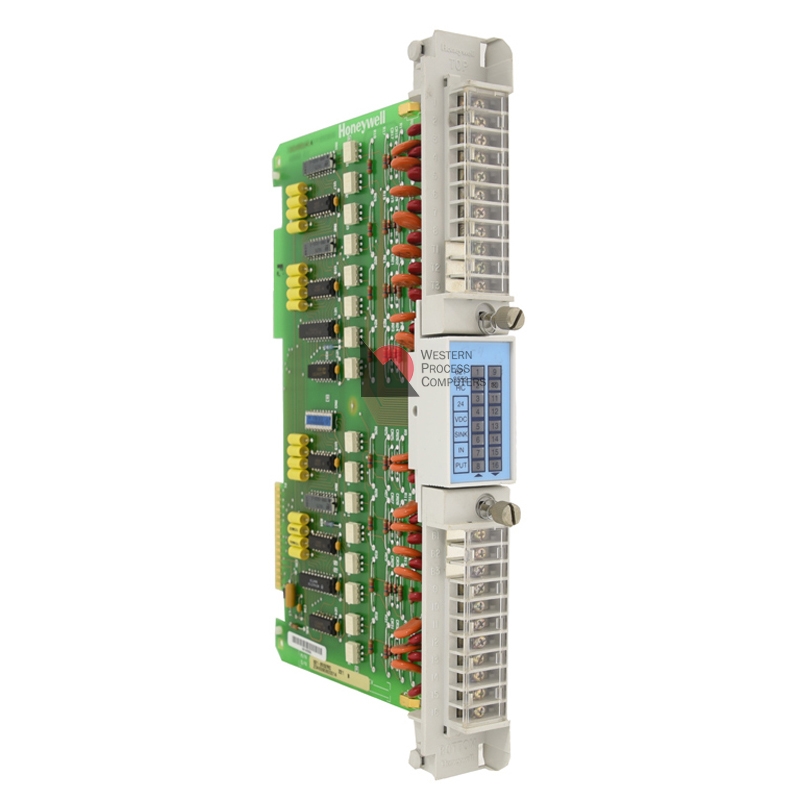

24 Vdc Sink Discrete Input Module
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
| 621-3552RC | |
|---|---|
| Point Inputs | 16 |
| Special Feature | Sink Input fast response |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 18-28 Vdc |
| Current Range | 3-9 mA 6 mA at 24Vdc typical |
| Switching Level Logic 1 Logic 2 | 18 Vdc 11 Vdc |
| Allowable Leakage Current | 1.3 mA |
| Input Delay Off to On On to Off | 0.26 ms (max.) 1.4 ms (max.) |
| Operating Current +5 Vdc | 54 mA max. |
| Terminal Block Required | 621-9950 |
- System: Honeywell DCS
- Part Number: 621-3552RC
- Alternates: 6213552RC
- Category: IPC 621-Input
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6213552RC. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
