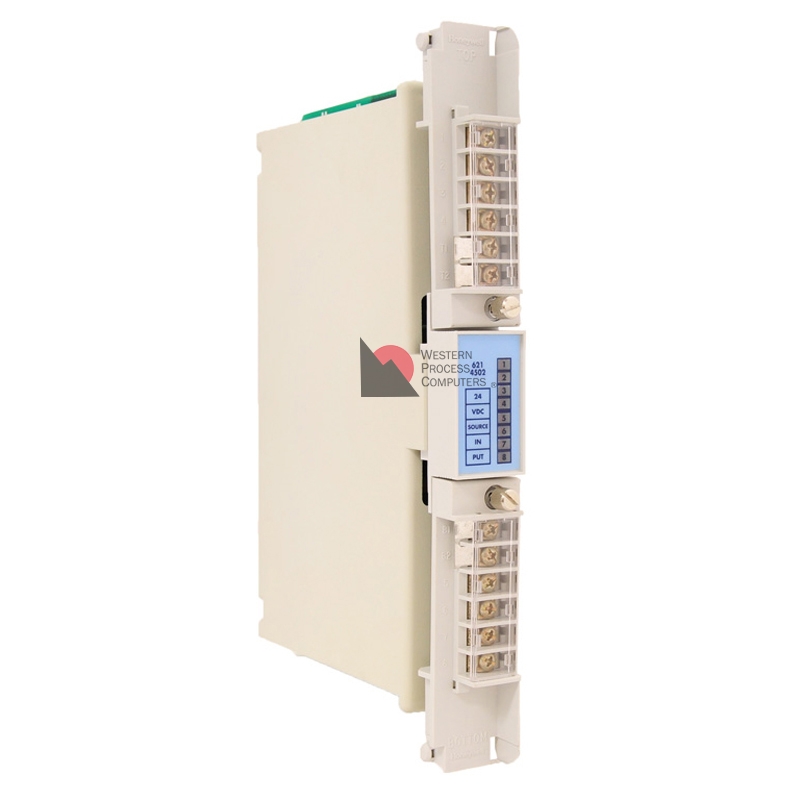

8-Point Vdc Sink Discrete Input Module

Note:

Terminals T1 and B1 provide voltage connections for circuits 1 through 4. Terminals T2 and B2 provide voltage connections for terminals 5 through 8. Separate voltage sources will power circuits 1 through 4 and 5 through 8 if the terminal block jumpers are removed.

8-Point Vdc Source Discrete Input Module Specifications:

POINT INPUTS 8

POINTS PER COMMON 4
Source input fast response

NOMINAL VOLTAGE 12-24 Vdc

VOLTAGE RANGE 10-32 Vdc

CURRENT RANGE 4.5-28 mA, (18 mA at 24 V typical)

SWITCHING LEVEL

Logic 1 3 Vdc

Logic 0 10 Vdc

ALLOWABLE

LEAKAGE CURRENT1.2 mA

INPUT DELAY

Off to On 0.26 ms max

On to Off 1.4 ms max

OPERATING

CURRENT +5 Vdc 30 mA max.
