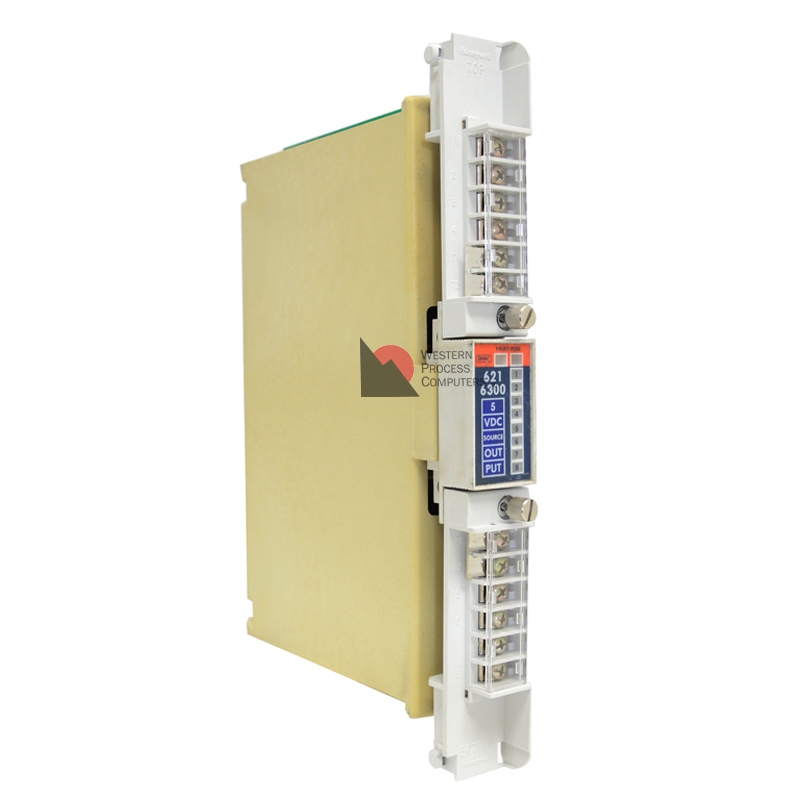

621-6300
Availability: In Stock
5VDC Source Output 8-pt
| 621-6300 | |
|---|---|
| Outputs | 8 Per Module |
| Points Per Common | 4 |
| Voltage Range | 4.8 - 5.2 Vdc Logic 0: <0.4Vdc Logic 1: >2.4Vdc |
| Maximum Current Range | 100mA per output |
| Surge Current | 250mA, for 100mS |
| Off-State Leakage Current | ≤0.05mA (typical) |
| On-State Voltage Drop | ≤1.2 Vdc at 100mA |
| Fusing | 1 per group of 4, 0.8A Slo-blow |
| Operating Current +5 Vdc | 70mA plus 5mA for each Energized output, 110mA maximum |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-6300
- Alternates: 6216300
- Category: IPC 621-Output
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216300. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
