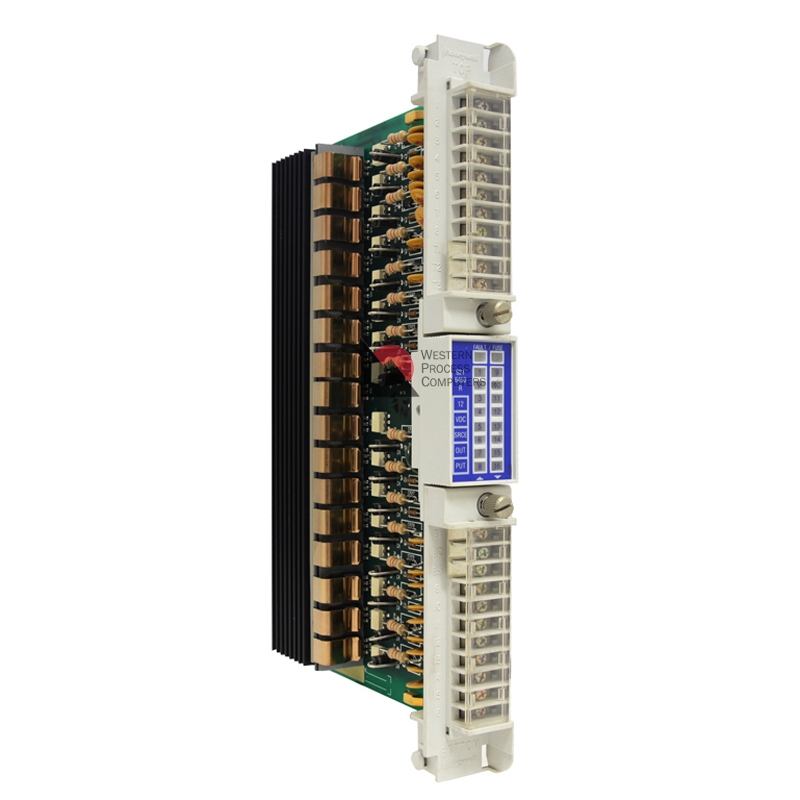

621-6450R
Availability: In Stock
12VDC Source Output 16-pt
16 Point, 12 Vdc Source Discrete Output.
| 621-6450R | |
|---|---|
| Outputs | 16 |
| Points Per Common | 16 |
| Special Feature | Source Output |
| Nominal Voltage | 12 Vdc |
| Voltage Range | 11-18 Vdc |
| Maximum Current Range | 2 A/circuit, 12 A/module |
| Surge Current | 8 A for 10ms (nonrepetitive) |
| Field Power Requirement | 25 mA for each energized output |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
| Fusing | 7 A fast blow 1 per group of 4 |
| Operating Current +5 Vdc | 124 mA plus 5 mA for each energized output, 204 mA max |
| Terminal Block Required | 621-9950 |
