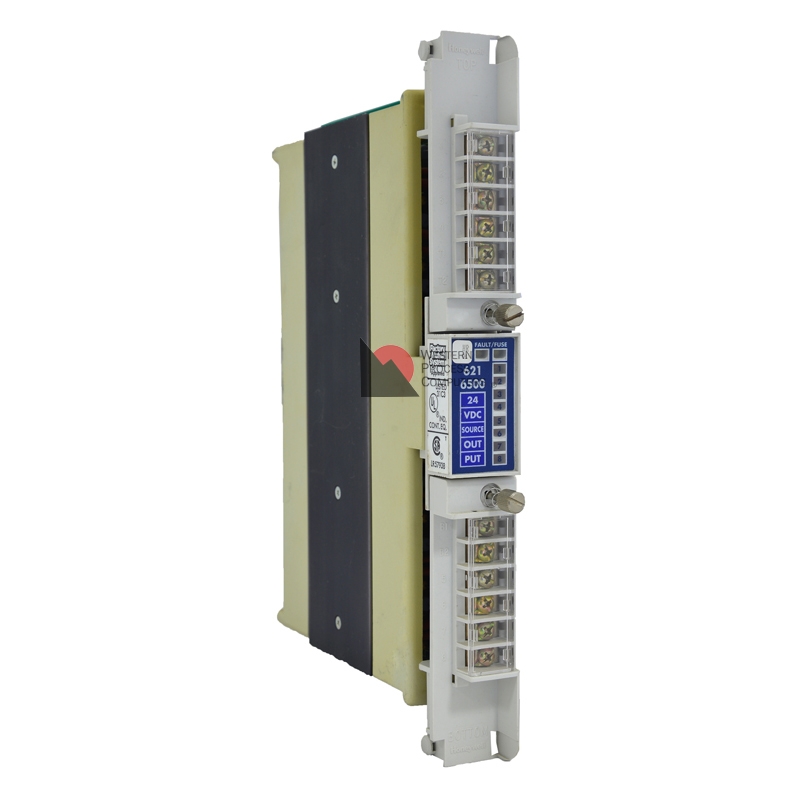

621-6500
Availability: In Stock
12-24VDC Source Out 8-pt
12-24 Vdc Source Discrete Output
| 621-6500 | |
|---|---|
| Outputs | 8 |
| Points Per Common | 4 |
| Special Feature | Source Output |
| Nominal Voltage | 12-24 Vdc |
| Voltage Range | 11-32 Vdc |
| Maximum Current Range | 2 A/circuit, 6 A/common, 8 A/module |
| Surge Current | 8 A for 10ms (nonrepetitive) |
| Field Power Requirement | 15 mA at 12 Vdc 32 mA at 24 Vdc for each energized output |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
| Fusing | 8 A fast blow per group of 4 |
| Operating Current +5 Vdc | 70 mA plus 5 mA for each energized output, 110 mA max |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-6500
- Alternates: 6216500
- Category: IPC 621-Output, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216500. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
