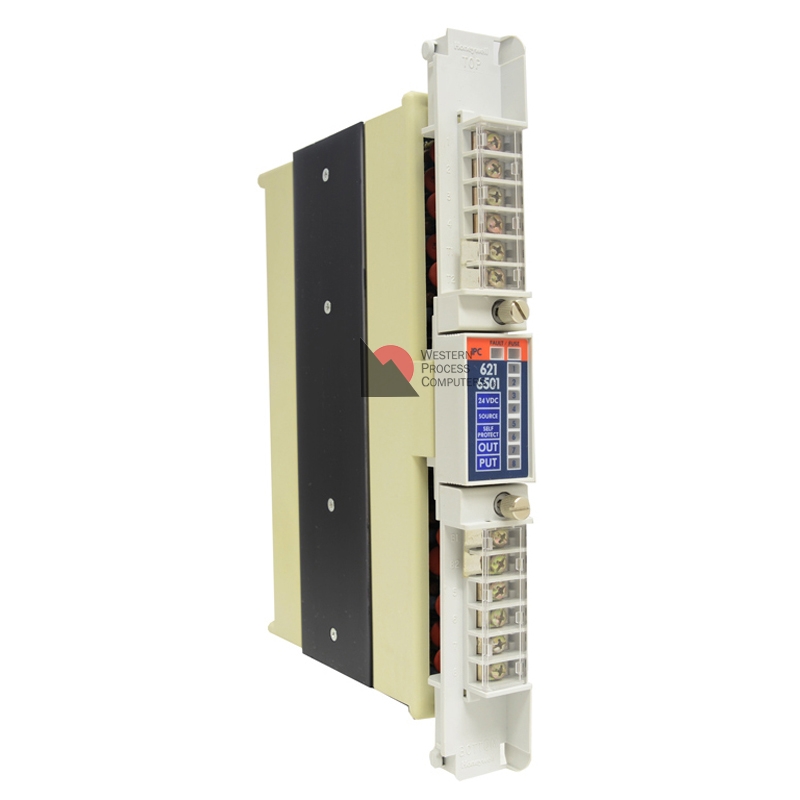

621-6501
Availability: In Stock
24VDC Source Output
NOTE
The 621-6501 has been superseded by the 621-6503RC 12-24VDC Source Output,
Self-Protected Module and is no longer available.
OPERATION
The 621-6501 compares the status of the output transistor with the 620 CPM's signal. When a miscompute between the two signals occurs, the 621-6501 indicates a malfunction.
| 621-6501 | |
|---|---|
| Outputs | 8 per module |
| Points Per Common | 4 |
| Voltage Range | 11-28 Vac |
| Maximum Current Range | 2A per circuit 6A per common, 8A per module |
| Surge Current | 5A for 10ms, (non-repetitive) |
| Off-State Leakage Current | ≤5mA (typical) |
| On-State Voltage Drop | ≤2 Vdc at 2A |
| Fusing | 1 per circuit, 3A fast blow |
| Operating Current +5 Vdc | 70mA plus 5mA for each Energized output, 110mA maximum |
| Terminal Block Required | 621-9949 |
- System: Honeywell DCS
- Part Number: 621-6501
- Alternates: 6216501
- Category: IPC 621-Output
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216501. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
