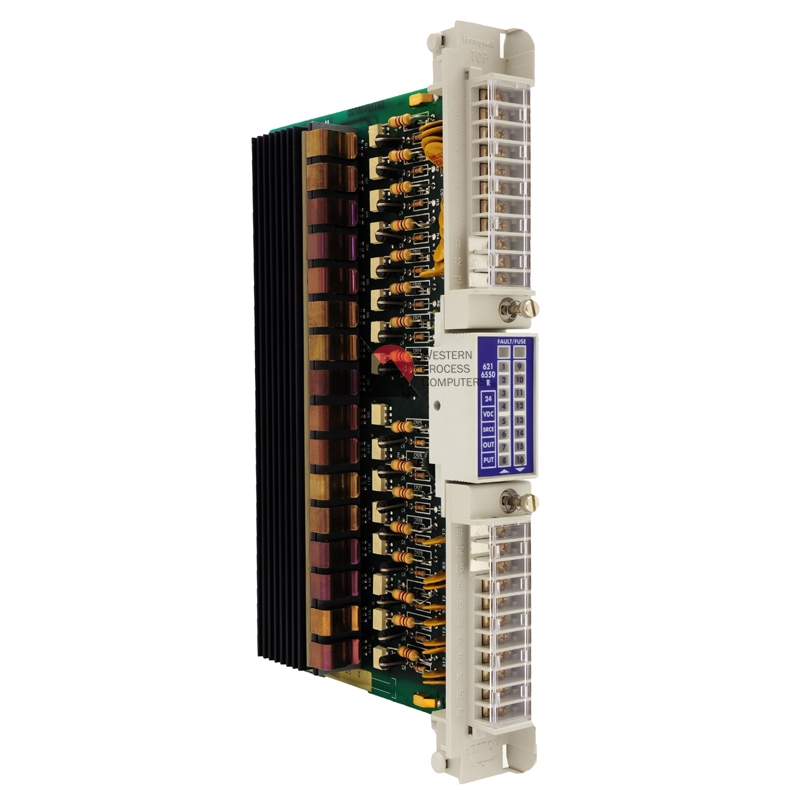

621-6550R
Availability: In Stock
24V Source Output Module
24 Vdc source Discrete Output (16 Outputs)
The 'R' suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
| 621-6550R | |
|---|---|
| Outputs | 16 |
| Points Per Common | 16 |
| Special Feature | Source Output |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 18-28 Vdc |
| Maximum Current Range | 2 A/circuit, 5 A/per group of 4, 12 A/module |
| Surge Current | 8 A for 10ms (non-repetitive) |
| Field Power Requirement | 25 mA for each energized output |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
| Fusing | 7 A fast blow 1 per group of 4 |
| Operating Current +5 Vdc | 124 mA plus 5 mA for each energized output, 204 mA max |
| Terminal Block Required | 621-9950 |
- System: Honeywell DCS
- Part Number: 621-6550R
- Alternates: 6216550R
- Category: IPC 621-Output, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216550R. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
