621-6551
Availability: In Stock
24VDC Output Low Power Source

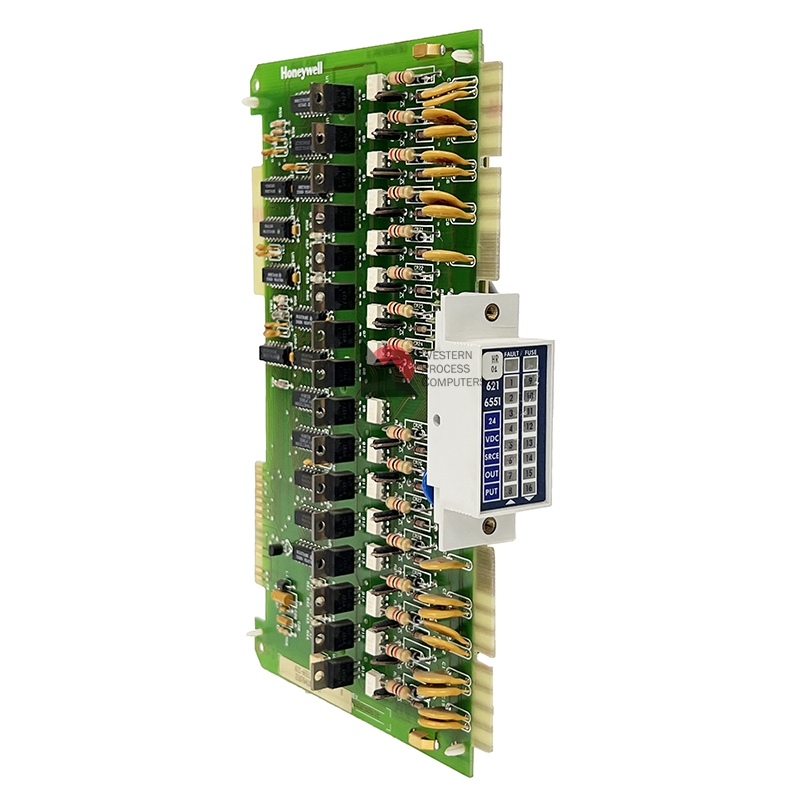

The Honeywell 621-6551 is the 24 Vdc source Discrete Output low power (16 Outputs), non-CE, not hot-swappable.
| Points Per Common |
16 |
| Special Feature | Source Output low power |
| Nominal Voltage | 24 Vdc |
| Voltage Range | 11-28 Vdc |
| Maximum Current Range |
0.5 A/circuit, 4 A/per module |
| Surge Current | 5A for 10ms (non-repetitive) |
| Field Power Requirement |
25 mA for each energized output |
| Off-State Leakage Current |
=5 mA (typical) |
| On-State Voltage Drop |
=2 Vdc at .5 A |
| Fusing | 3 A fast blow 1 per group of 4 |
| Operating Current +5 Vdc |
124 mA plus 5 mA for each energized output, 204 mA max |
| Terminal Block Required |
621-9950 |
* The model 621-6551 has 16 outputs capable of supplying 0.25 A concurrently, or 8 outputs capable of supplying 0.5 A concurrently.
- System: Honeywell DCS
- Part Number: 621-6551
- Alternates: 6216551
- Category: IPC 621-Output, Logic Manager
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216551. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
