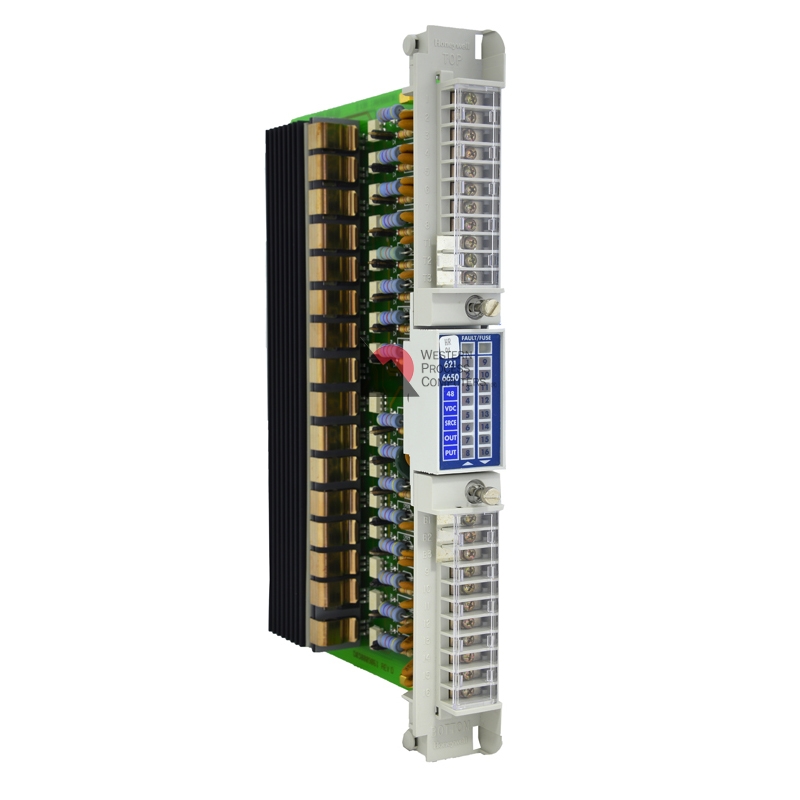

621-6650
Availability: In Stock
48VDC Source Output 16-pt
Power Derating
Applications requiring voltages of more than 48VDC may require derating according to the ambient temperature (60 degC maximum) of the rack.
CAUTION
--- Exceeding the recommended number of ON outputs may damage the module.
---Applications requiring voltages of more than 48VDC should not operate above 140 degF (60 degC), or damage may occur to components.
| 621-6650 | |
|---|---|
| Outputs | 16 |
| Points Per module | 16 |
| Voltage Range | 38-66 Vdc |
| Maximum Current Range | 2A per circuit, 5A per group of 4, 12A permodule |
| Surge Current | 8 A for 10ms |
| Field Power Requirement | 25 mA for each energized output |
| Off-State Leakage Current | <=5 mA (typical) |
| On-State Voltage Drop | <=2 Vdc at 2 A |
- System: Honeywell DCS
- Part Number: 621-6650
- Alternates: 6216650
- Category: IPC 621-Output
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 6216650. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
