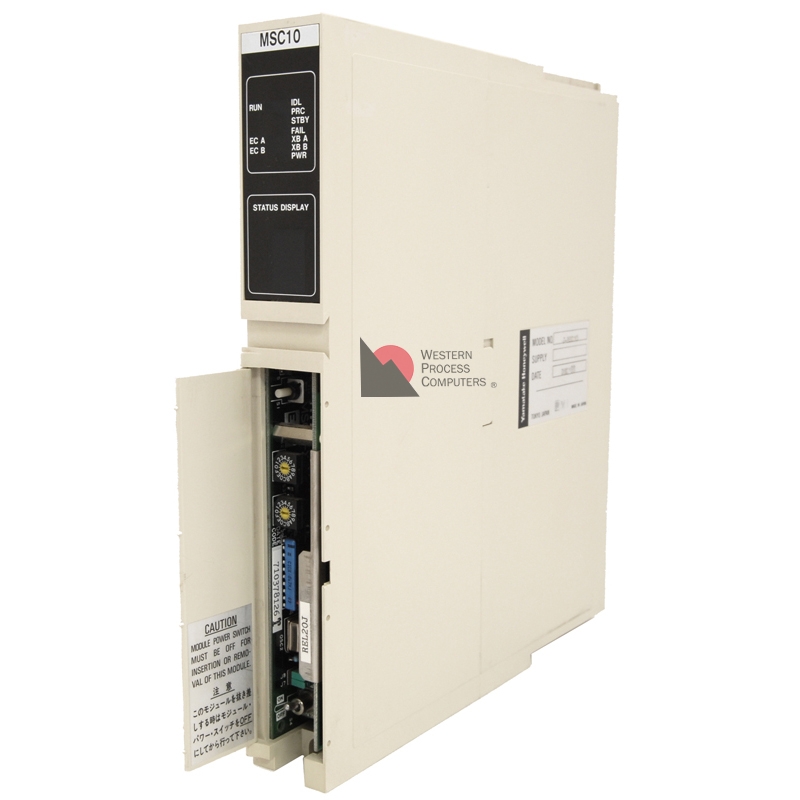

This is the Control Module for the Advanced Multifunction Controller.

This control module provides the main processing and control functions of the AMC. This module contains the CPU, RAM, EPROM, I/O bus interface, EC-Link interface, and DC/DC regulators. Status information is provided by LEDs in the display area at the top of the module.

The CPU used in the J-MSC10 si the Motorola 68000 microprocessor. The module has 128K of EPROM and 64K of RAM for the firmware and database of the AMC. The module has a capacitor backup which preserves RAM For up to 72 hours in the event of a power failure.

A single J-MSC10 is used in non-redundant applications; two are required for redundant installations.
