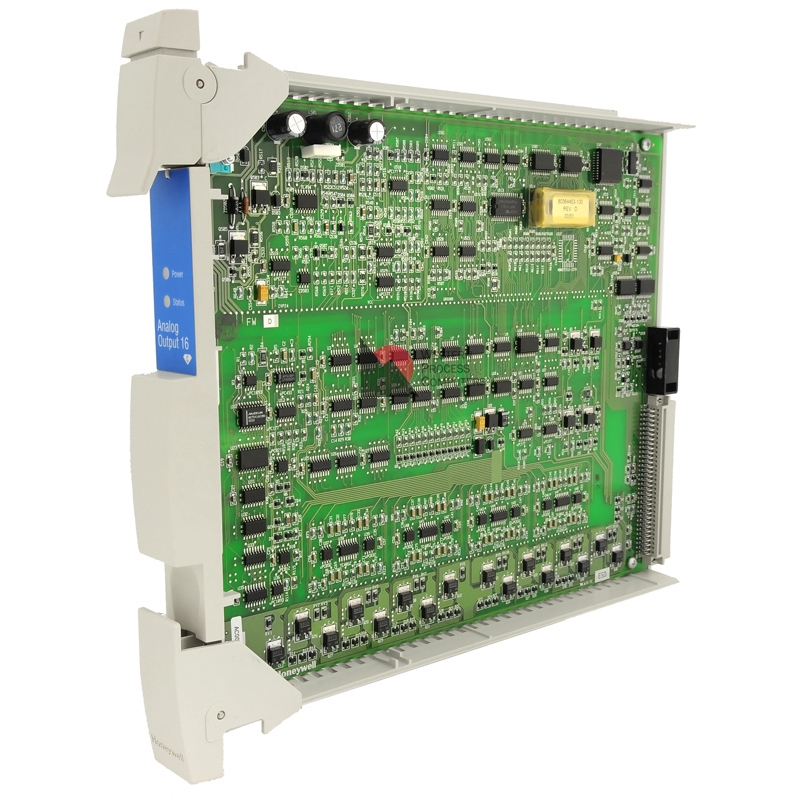

Honeywell 80363969-150 Analog Output IOP provides eight 4-20 mA outputs to proportioning loads, such as valves. Model number MU-PAOY22 Analog Output IOP (80363969-150) is a CE Compliant assembly. There is no non-CE Compliant AO IOP assembly. The CE Compliant Analog Output FTA models do not require shielded field wiring, but the manufacturer of the valve may require shielded field wiring.

• Analog Output Processor MC-PAOY22
• CE-compliant, Conformal Coated
• Output Channels: 16
• Output Type: 4-20 mA
• Redundancy Supported

Compatible FTA's

Filters Sort results

Reset Apply

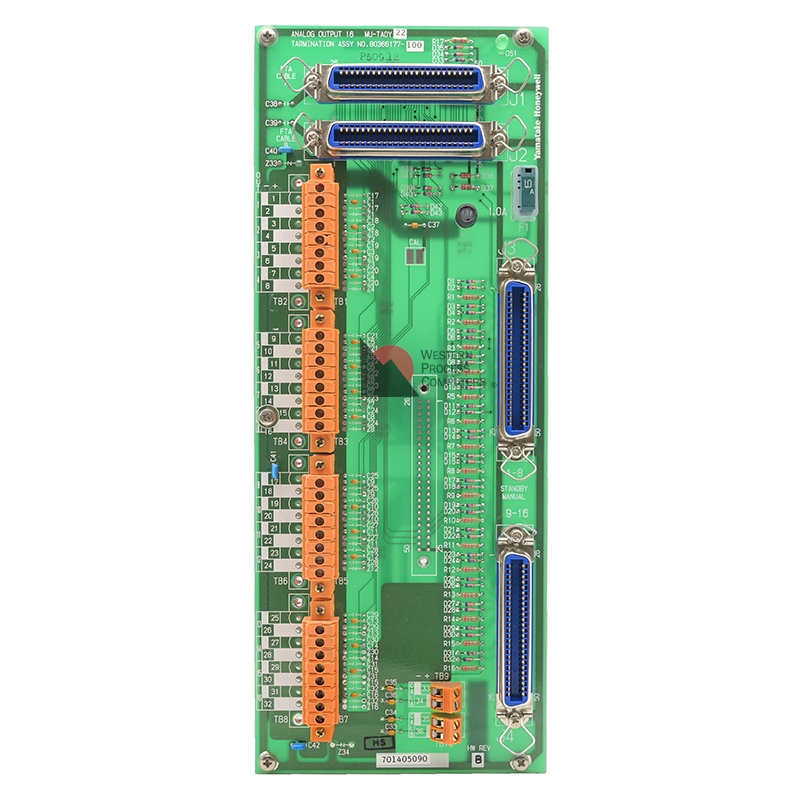

	MU-TAOY22
	MU-TAOY22

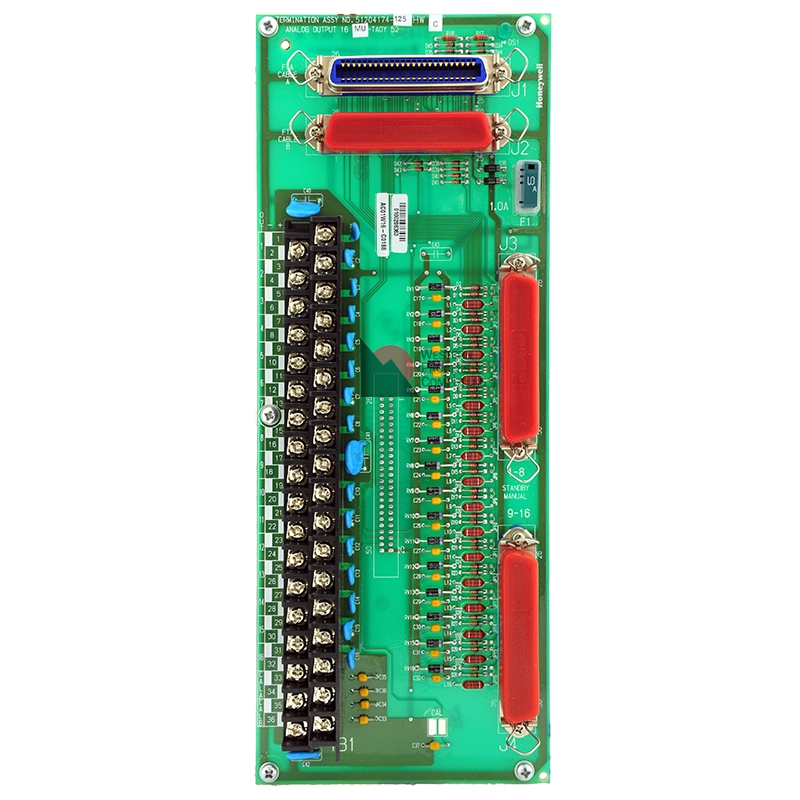

	MU-TAOY52

Filters Sort results

Reset Apply

	MC-TAOY22
	MC-TAOY52

The model MU-PAOX01, MU-PAOX02 and MU-PAOX03 Analog Output IOPs are compatible only with the model MU-TAOX01, MU-TAOX02, MU-TAOX12, and MU-TAOX52 Analog Output FTAs. These IOPs are not compatible with the model MU-TAOY22, MU-TAOY23, MU-TAOY52, or MU-TAOY53 Analog Output FTAs.

CE Compliant and non-CE Compliant IOPs have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).

There are also conformal coated and non-conformal coated IOPs. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination.

For more selections of FTAs and or IOPs visit our FTA & IOP Finder
The Non-Conformal Coated IOP is 80363969-100
