82114930-001
Availability: In Stock

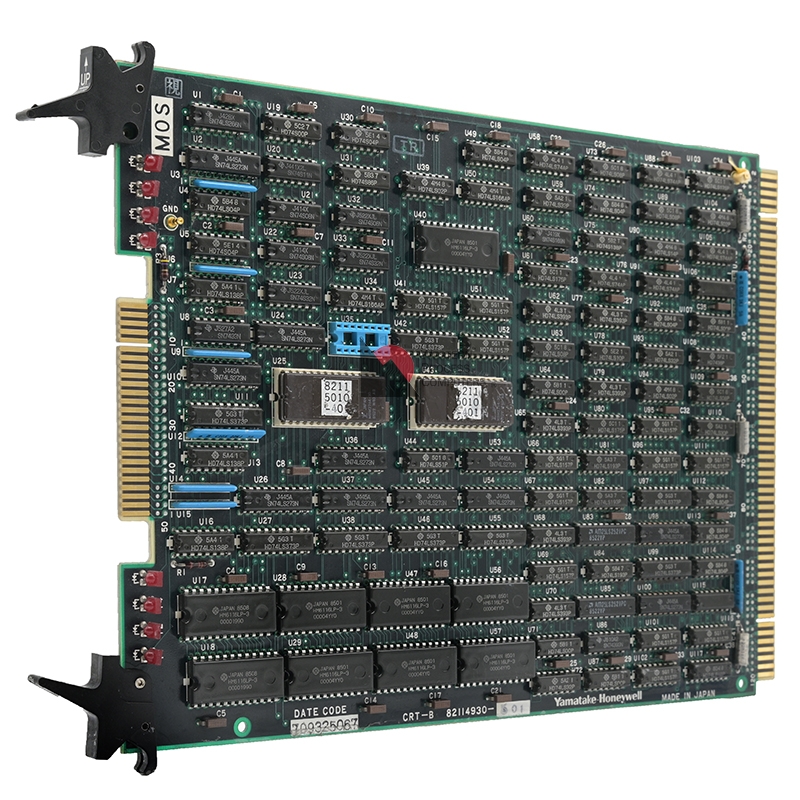

CRT B for rel 520 Op St
The CRT B card has the RAM used for storage of displaying data. It also contains the PROMs used for character generation. Board has no jumpers, but has several LEDs.
Board Position Description
DS1 ? Occasionally lit when character mode changes.
DS2 ? Lit while in small character mode.
DS3 ? Lit while in normal character mode.
DS4 ? Lit while in Honeywell character mode.
DS5 ? Normally off. When lit indicates a ROM failure.
DS6,7,8 ? Periodically lit to indicate firmware operation state.
When station in reset and lit it indicates RAM failure.
- System: Honeywell DCS
- Part Number: 82114930-001
- Alternates: 82114930001
- Category: Operator Station (TDC 2000)
- Availability: In Stock
- Price: Contact for Quote
- Shipping: Same Day Shipping Options Available
- Price: Contact for Quote
- Warranty: Minimum one-year replacement policy
Western Process Computers, Inc. provides certified, tested, like-new hardware ranging from single printed circuit boards on exchange up through complete assemblies to worldwide users of Honeywell DCS systems (TDC 2000 & TDC 3000). We specialize only in Honeywell DCS hardware such as the 82114930001. This is our focus, our specialty – this is all that we do. Request a quote today for competitive pricing and lead times.
