Applications

• Universal Stations with EPDG video
• Classic Honeywell Furniture

Data Sheet

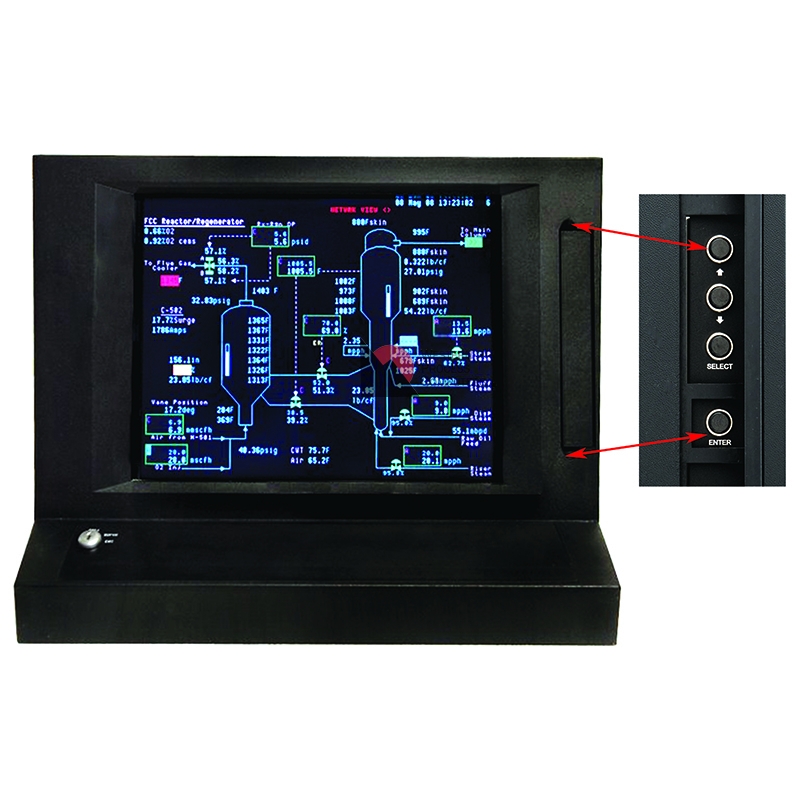

A Flat-Panel LCD monitor to replace a flat Sony CRT or LCD in Classic Honeywell Universal Stations with no bezel change required.

Maintain the integrated look of your classic Honeywell consoles ...

Honeywell's current display solution for classic furniture requires another bezel change, and replaces the integrated bezel mounted display with an externally mounted LCD display. If you are not happy with the new bolted-on look, or you are not looking forward to another 2-hour bezel replacement, we offer the FP-3000STS as a high-quality, replacement solution. This monitor includes an integrated touchscreen so the only requirement is to remove existing display, touchscreen and control panel, mount new display in the existing bezel with a screw in each corner, mount our new Menu Control, connect power and video and you are up and running.

A bezel-mounted replacement ...

The FP-3000STS is attached to the (4) mounting bosses of the upper or lower-tier bezel used with the flat Sony (Honeywell p/n 51197096-100). The old Sony display is removed from the station along with the touchscreen, and the slide rails are no longer used.

A bright, durable display ...

The delicate LCD plastic surface is protected by a glass anti-glare panel attached to the front of the display. This durable surface protects the LCD from the wear scratches that any plastic surface eventually suffers after repeated cleaning (or touching with dirty fingers, pencils, or sharp objects). The anti-glare treatment of the glass combined with the inherent low-glare characteristics of a flat display results in an excellent high-contrast display.

Low maintenance, long life ...

The solid-state design of the flat-panel TFT LCD display provides inherent reliability, low power consumption, and low maintenance. Aside from periodic cleaning of the anti-glare glass, the
FP-3000STS requires no regular periodic maintenance. Technicians have access to a full range of digital display adjustments during setup. This adjustment can be frozen to prevent subsequent adjustment by unplugging the adjustment cable from the display after setup.
