51304487-100
Availability: In Stock
DO IOP CE 16 channel
- Digital Output Processor MU-PDOX02
- CE-compliant, not conformally coated
- Redundancy not supported
- Output Channels: 16
- Available Output Types:
- 24 Vdc Nonisolated
- 24 Vdc Isolated
- 3-30 Vdc Solid-State
- 31-200 Vdc Solid-State
- 120/240 Vac Solid State
- 120 Vac/125 Vdc Relay
- 240 Vac/125 Vdc Relay
Compatible FTA's
The 24 Vdc isolated Digital Output (DO) FTAs provide 32 isolated digital outputs. The output drivers in the IOP are optically isolated from PM/APM/HPM common and can drive loads requiring up to 500 mA at 24 Vdc.
The 3-30 Vdc solid-state Digital Output (DO) FTA provides 16 direct current power outputs that are optically isolated from each other and the subsystem.

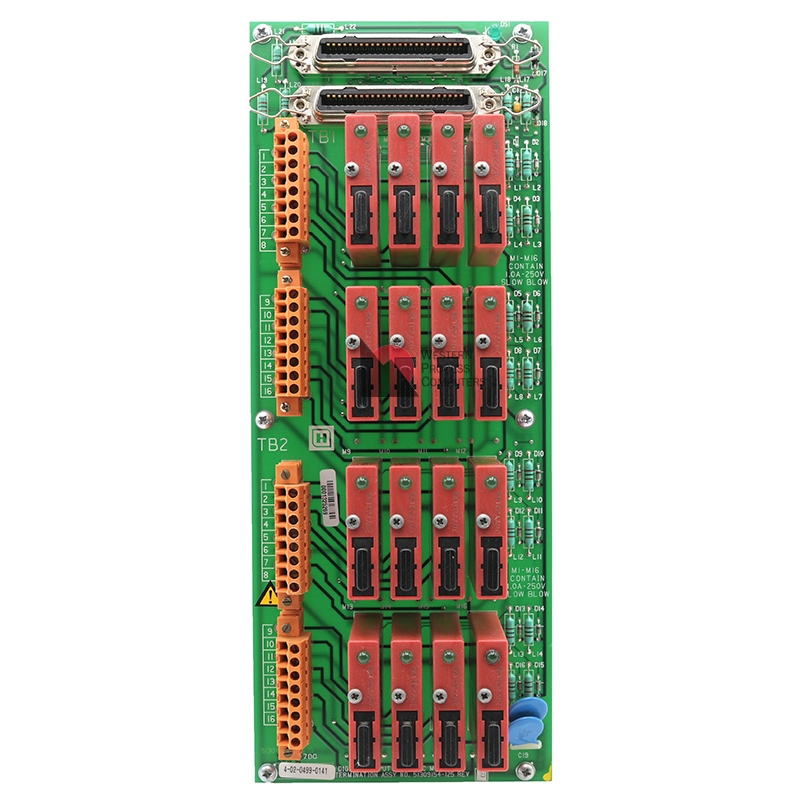

The 240 Vac/125 Vdc relay Digital Output (DO) FTA has 16 independent electromechanical relays for ac or dc power outputs. The + and - output polarity must be strictly observed for each output. Signals from the FTA are normally considered as power circuits and, therefore, are subject to electrical codes.
Connection of the 24 Vdc power source to TB1-18 is important and is required internally by the 24 Vdc Digital Output IOP as a reference voltage when the digital outputs are checked by the IOP during a readback diagnostic. Without the proper TB1-18 connection to the 24 Vdc power source, the IOP will not operate correctly.
For more selections of FTAs and or IOPs visit our FTA & IOP Finder
The Conformal Coated IOP is 51304487-150
