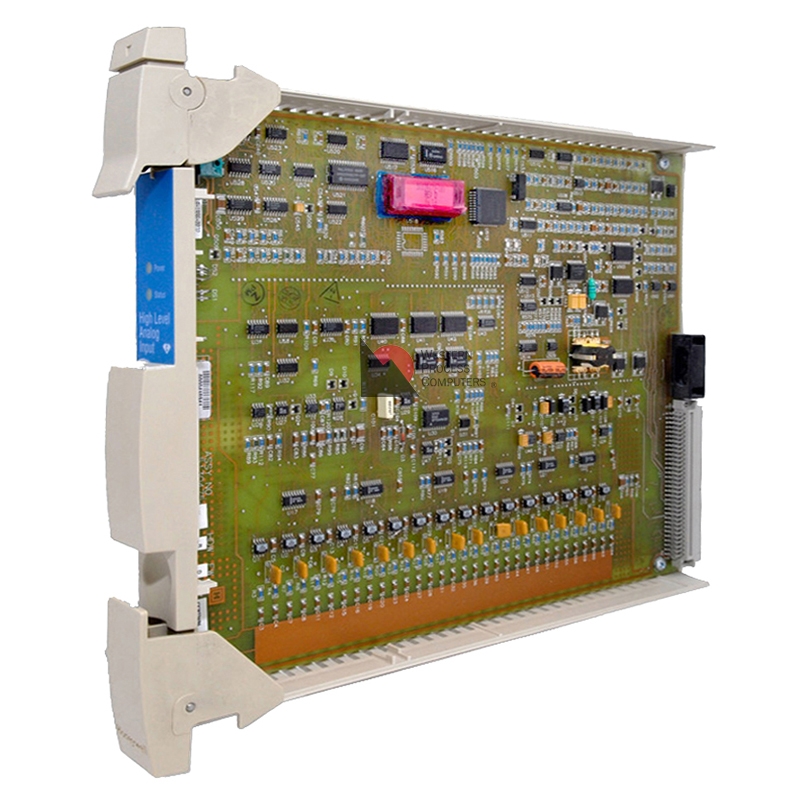

51304754-150
Availability: In Stock
HLAI2 IOP 16 CC CE
- High Level Analog Input Processor - MC-PAIH03 (51304754-150)
- CE-compliant, conformally coated
- Input Channels: 16 analog input channels
- Input Scan Rate: 4 samples per second
- Input Range:
- 0 to 5 V
- 1 to 5 V
- 0.4 to 2 V
- 4-20 mA through 250 ohms

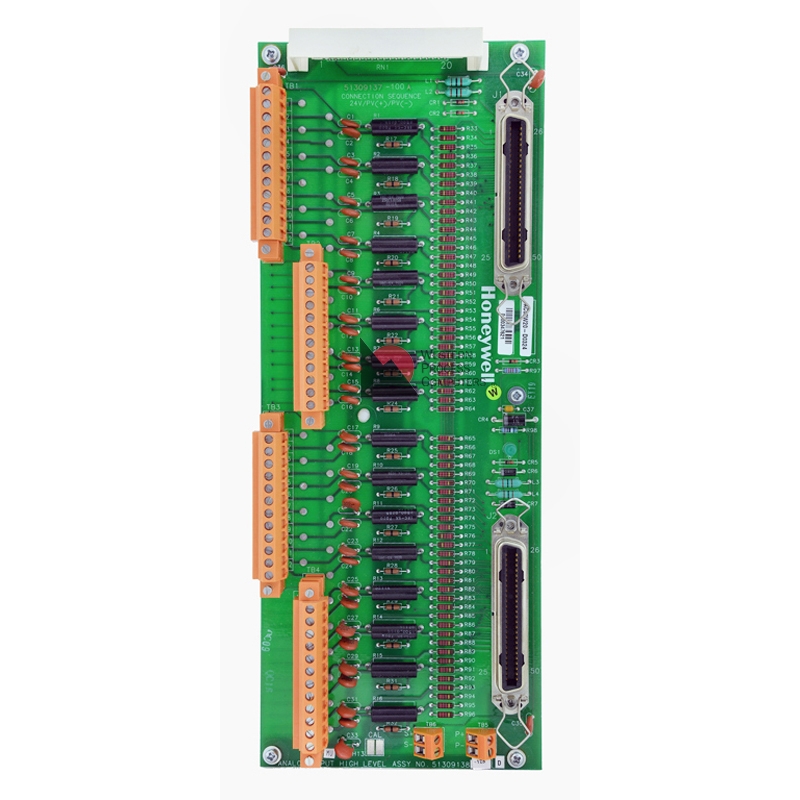

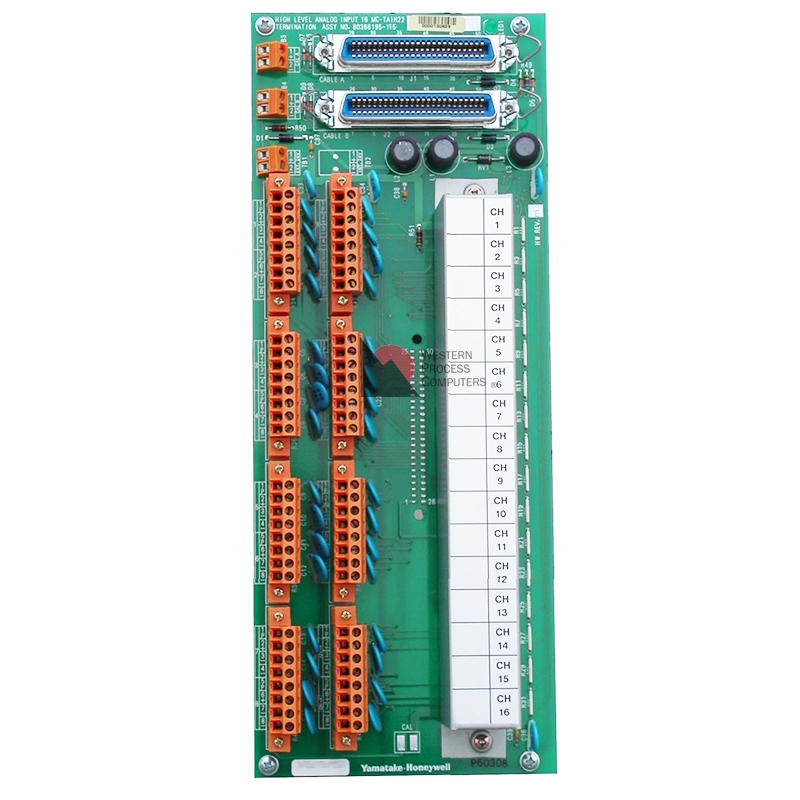

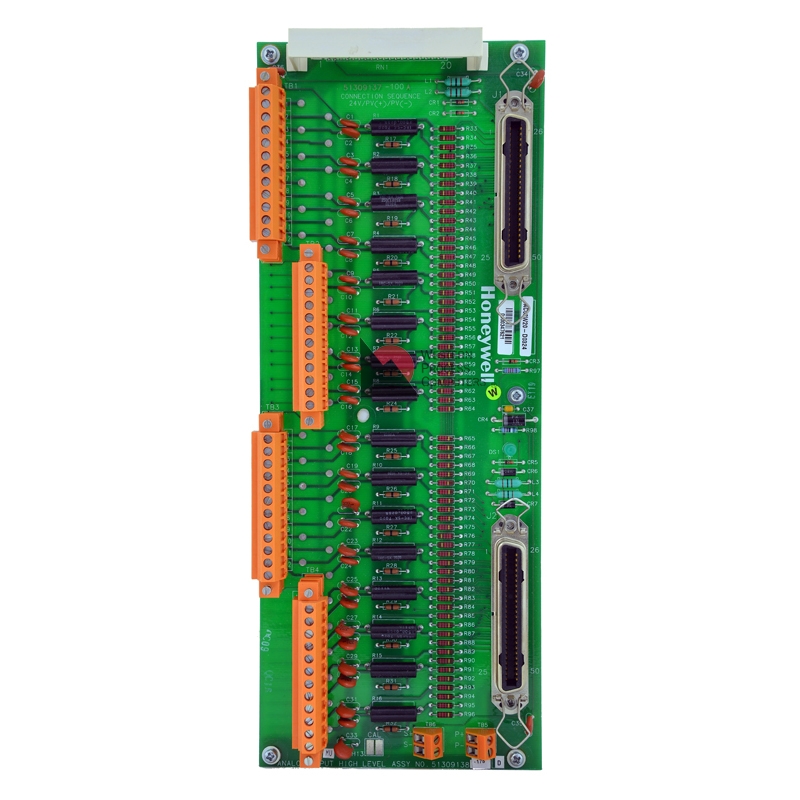

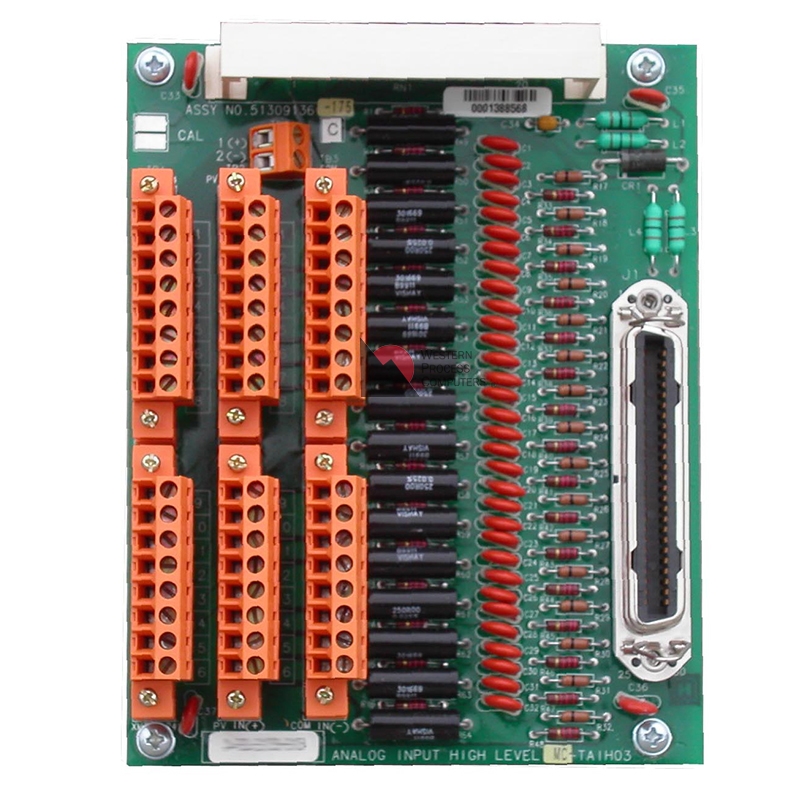

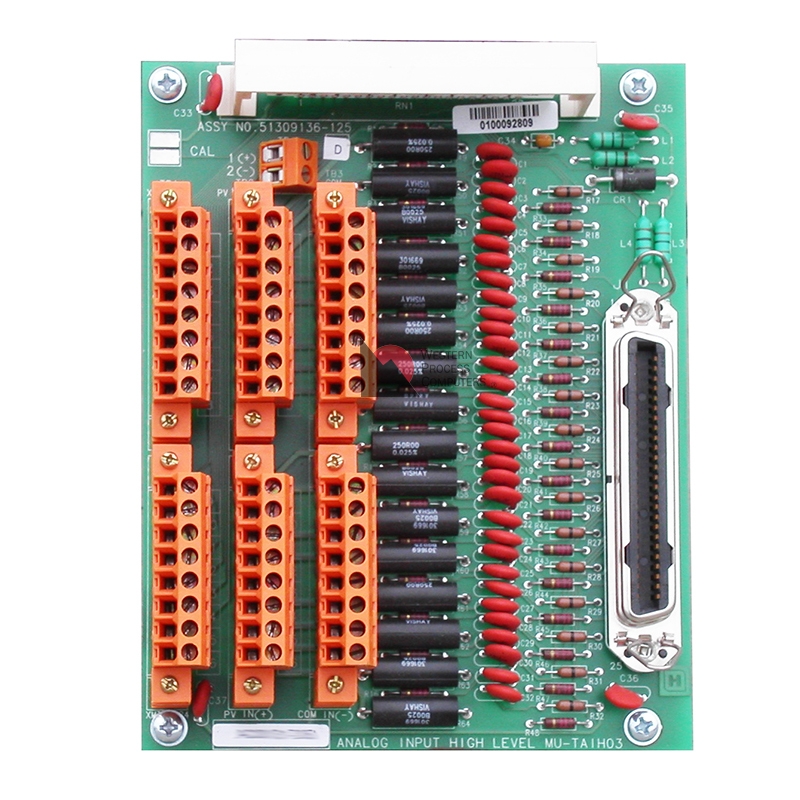

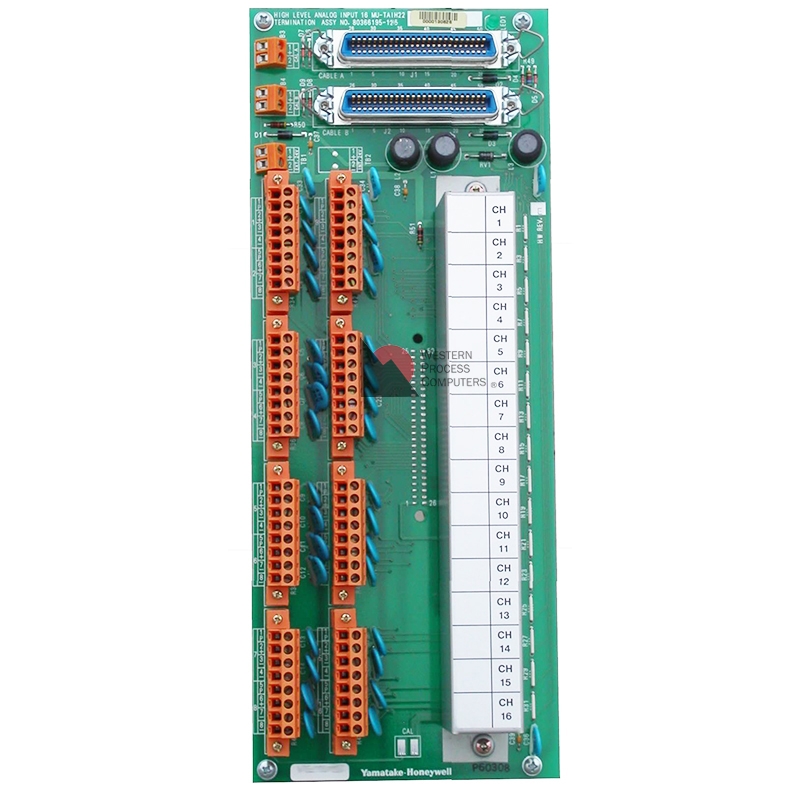

Compatible FTA's
HLAI2 IOP - High Level Analog Input
High Level Analog Input (HLAI2) accepts up to 16 high level analog inputs. The inputs are configurable as single-ended or differential in relation to logic ground.
In general there are two models of each style of High Level Analog Input (HLAI) Input Output Processors (IOP), a CE Compliant and non-CE Compliant model. HLAI2 IOPs in a redundant configuration must have a minimum of Rev. D.
CE Compliant and non-CE Compliant have unique model numbers. CE compliance refers to the adherence to the CE marking requirements, which are a certification standard indicating that a product meets the essential health, safety, and environmental protection requirements defined by European Union (EU) legislation. The CE mark is a key indicator that a product can be legally sold in the European Economic Area (EEA).
There are also conformal coated and non-conformal coated FTAs. Conformal coating is a specially engineered polymeric film-forming product that protects circuit boards, components, and other electronic devices from harmful environmental conditions like moisture, thermal shock, static, vibration, and contamination. All IOP cards are available with and without conformal coating.
For more selections of FTAs and or IOPs visit our FTA & IOP Finder
The Non-Conformal Coated IOP part number is 51304754-100
